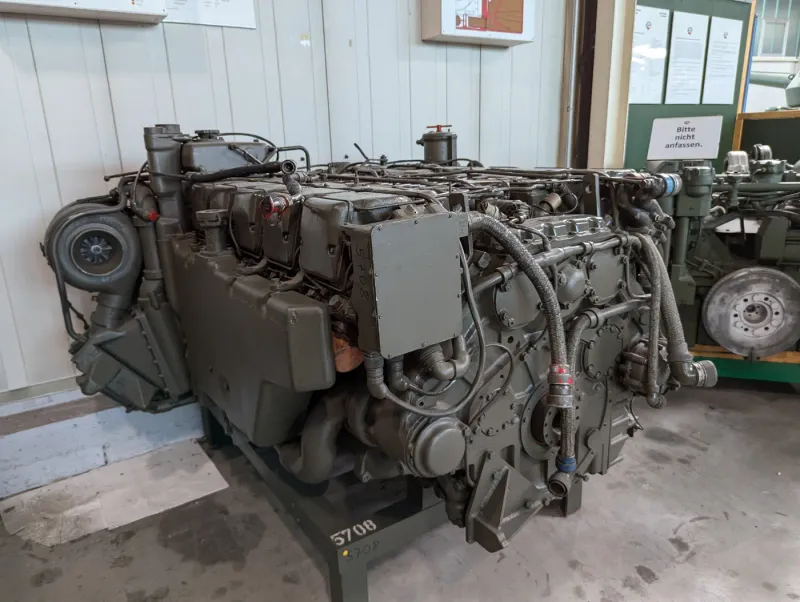

MTU MB 873 Ka-501

V12 twin-turbocharged diesel that has powered every production Leopard 2 variant since 1979, tracing its design back to the cancelled US/German MBT-70 program. Built under the mtu brand by Rolls-Royce Power Systems, distinct from Munich-based MTU Aero Engines.

In service since 1979

Compiled from public sources ·primary reference ↗

Data confidence Last verified 2026-08-10 ·

Stub · 5%

1,500

2,200

Procurement snapshot

Availability & export

German export-licensed

BAFA licensing with strict end-use review; approvals can be politically constrained.

Channel: Direct commercial / G2G

Fielded & proven

Operator data not public

In service since 1979. Status: active.

Lifecycle cost (est.)

No public unit price to model from. Why so few systems publish one →

Interoperability

No standardised NATO calibre / datalink detected in public specs.

Competitive field

13 comparable systems from 9 other manufacturers

Counted in the WeaponSpecs database: engines built by another manufacturer. A count of what this catalog holds, not a survey of the whole market. See the alternatives →

Derived guidance from public data, export regime by country of origin, lifecycle from the GAO ~30% acquisition rule. Verify eligibility, pricing and offsets with the manufacturer and your acquisition authority.

Overview

The MB 873 Ka-501 displaces about 47.6 liters (170 mm bore x 175 mm stroke) and produces roughly 1,100 kW (1,500 hp) at 2,600 rpm with peak torque near 4,700 N-m. Rolls-Royce Power Systems won a new order for 300 MB 873 engines for further Leopard 2 production in 2025. This record covers the bare engine; published weight figures for the combined EuroPowerPack (engine plus transmission and cooling), roughly 1,800 kg, are not the engine's standalone weight and are omitted here rather than misattributed.

Powers these platforms

Systems in the WeaponSpecs database that list the MTU MB 873 Ka-501 as their engine.

Full specifications

Physical

Dimensions, weight and crew.

Physical specifications
Length Overall length including gun/probe where applicable.	1.8 m
Width Overall width, matters for rail/road transport of vehicles.	1.98 m
Height Overall height. Lower profile is harder to spot and hit for ground vehicles.	1.03 m
Empty weight Weight without fuel, ammunition or crew.	2,200 kg

Propulsion

Engine, power and fuel.

Propulsion specifications
Engine power Engine output power. Higher moves more weight faster.	1,500 hp
Propulsion type Turbofan, turboshaft, diesel, gas turbine, solid-fuel rocket, ramjet…	V12 twin-turbocharged diesel

Specifications compiled from public Rolls-Royce Power Systems (mtu) and reference sources ↗. Published defense figures are approximations, treat comparisons as directional. Last verified 2026-08-10.

Compare with rivals
